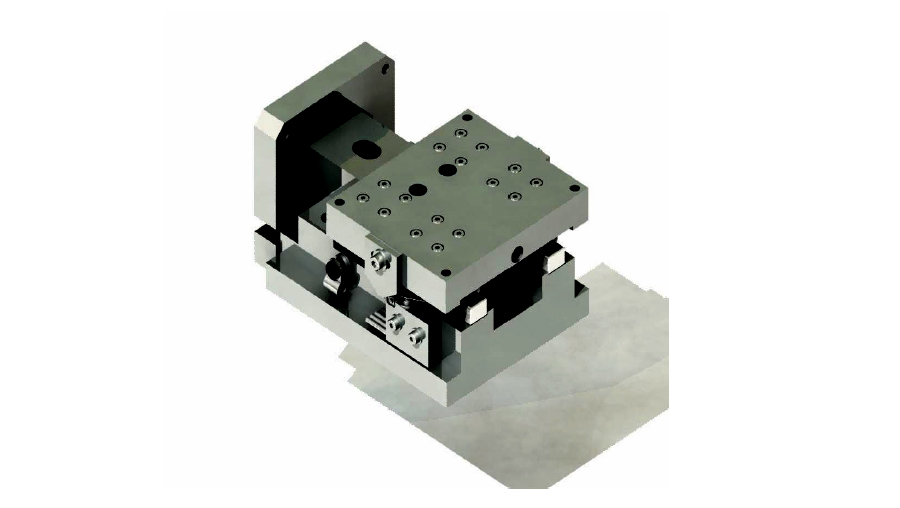

9000 Series Stage

Linear Motion Products

With miniature rail bearings and a short stroke leadscrew with a Delrin nut assembly, the series 9000 provides linear movement from a wide range of small motors.

The compact design allows installation in tight spaces for remote adjustment of focusing, tension, sensor position and many other continuousmovement applications.

Travel (mm) 10
Drive Delrin Nut on leadscrew, 1mm pitch
Accuracy +/-10μm
Load capacity (kg)
   Horizontal 2
Weight (kg) 0.5
Materials Alumium Alloy and stainless steel
Download a full specification including dimensions (.PDF)


  • Special travels available on request
  • XY and Z bracketry, standard and bespoke
