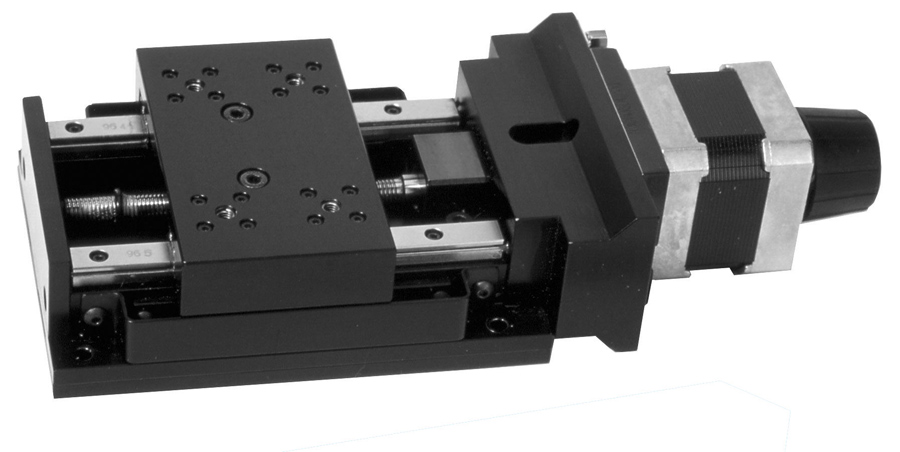

3000 Series Stage

Linear Motion Products

A compact design with miniature rail bearings, G0, 1mm pitch ground ballscrew and travels from 25 to 100mm, the 3000 series linear stage offers stability and accuracy in a small package size.

Both 17 frame size stepper and small servo motors with encoders are easily integrated onto the stage, offering resolutions to 0.1µm and better. Integrated mechanical datum and limit switches are common to all the models and connections are made by way of a secure 15 way D type connector.

2000 Series

Travel (mm) 25 50 75 100
Ballscrew Drive G0, precision ground, 1mm pitch
Accuracy +/- 2μm per 25mm travel
Resolution 1 µm (subject to control)
Flatness and Straightness of travel +/- 1µm per 12 mm of travel
Bi-directional repeatability +/- 1 µm
Load capacity (kg)
   Stage horizontal 10 10 10 10
   Stage vertical 4 4 4 4
Weight (kg) 0.6 0.65 0.7 0.75
Materials Aluminium alloy and stainless steel
Download a full specification including dimensions (.PDF)



Options
  • Leadscrew versions available
  • Special travels available on request
  • XY and Z bracketry, standard and bespoke
